Anker Bi-Directional HDMI Switch 2-in-1 Out 4K 60Hz – Black

Anker HDMI Switch 4K 60Hz Kuwait is a compact bi-directional HDMI switch designed to make it easy to connect multiple HDMI devices without constantly unplugging and reconnecting cables. Supporting resolutions up to 4K at 60Hz, bandwidth up to 18Gbps, HDCP 2.2, 3D content, high-resolution audio formats, and simple one-button switching, the Anker A83H1 is ideal for gaming consoles, PCs, laptops, TV boxes, monitors, TVs, and compatible HDMI display setups.

Bi-Directional HDMI Switching

One of the most useful features of the Anker HDMI Switch 4K 60Hz Kuwait is its bi-directional design.

It can operate in two different configurations:

2 Inputs → 1 Output

Connect two HDMI source devices to one display and switch between them using the button on top of the device.

For example:

• PS5 + Nintendo Switch → TV
• PC + Xbox → Monitor
• Laptop + TV Box → TV
• Two game consoles → One projector or monitor

The second configuration is:

1 Input → 2 Outputs

Connect one HDMI source device and switch its signal between two different displays.

Important: Two Displays Cannot Work Simultaneously

When used in 1 Input → 2 Output mode, the Anker A83H1 does not duplicate the image to both screens at the same time.

You select one display or the other using the switch button.

Anker’s official FAQ clearly states that in this bi-directional mode, the two monitors cannot display simultaneously.

So this product should be described as an HDMI switch, not as a powered HDMI splitter that mirrors one source onto two screens simultaneously.

Up to 4K at 60Hz

The Anker HDMI switch supports video resolutions up to:

3840 × 2160 – 4K @ 60Hz

It is also backward compatible with lower resolutions including:

• 1080p / 1080i
• 720p / 720i
• 576p / 576i
• 480p / 480i

This makes it suitable for modern 4K setups while still supporting older TVs and monitors.

18Gbps Bandwidth

Anker rates the switch for transfer bandwidth of up to:

18Gbps.

This bandwidth supports 4K 60Hz HDMI signals under the manufacturer’s recommended cable conditions.

For customers using gaming consoles or 4K video sources, this provides a convenient way to switch between devices without changing HDMI cables manually.

Important Cable Requirement for 4K 60Hz

This is an especially important specification for your Ayoub product page.

Anker states that for reliable 4K@60Hz, the HDMI cables used should meet these conditions:

Input HDMI cable: ≤ 1 meter
Output HDMI cable: ≤ 1 meter
Combined cable length: ≤ 2 meters
Cable specification: 30AWG

Longer or lower-quality HDMI cables can reduce signal stability or prevent 4K 60Hz from working correctly.

So I recommend mentioning this clearly to customers, especially gamers.

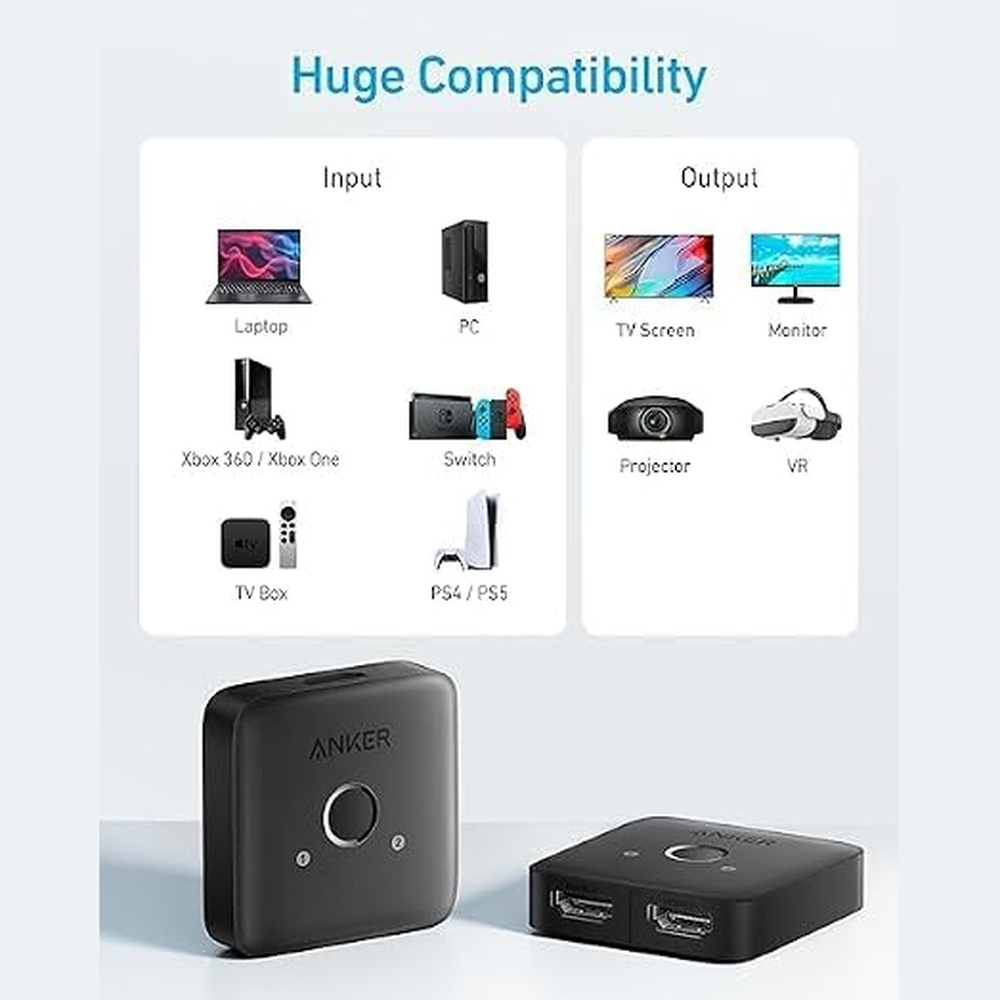

Ideal for Gaming Consoles

The Anker HDMI Switch 4K 60Hz Kuwait is particularly useful when your TV or monitor has limited HDMI ports.

Anker officially lists compatibility with:

• PS5
• PS4
• Xbox One
• Xbox 360
• Nintendo Switch
• PC
• Laptop
• TV Box

For example, if your monitor has only one available HDMI input, you can leave both your PS5 and Nintendo Switch connected and simply press the switch button to change between them.

One-Button Manual Switching

The top-mounted button is used to manually select the active HDMI connection.

This makes operation straightforward:

Connect the HDMI cables, press the button, and select the source or display you want to use.

No software interface or complicated setup is required.

Plug and Play

Anker’s official FAQ confirms that the A83H1 is Plug and Play and does not require driver installation.

This makes it practical for:

• Home entertainment
• Gaming setups
• Offices
• Meeting rooms
• Desktop PCs
• Laptop workstations

HDCP 2.2 Support

The Anker switch supports HDCP 2.2, an important compatibility standard for many modern protected HDMI video sources.

This helps support compatible streaming and entertainment devices that use HDCP-protected video.

3D Content Support

Anker also confirms support for 3D content.

This adds compatibility with supported HDMI equipment and media systems using 3D video.

Advanced Audio Support

The A83H1 supports a broad selection of digital audio formats, including:

• DTS
• DSD
• Dolby AC3
• 5.1 Channel Audio
• 7.1 Channel Audio

Anker also specifies an audio sampling rate of up to:

192kHz / 24-bit.

This allows compatible HDMI audio to pass through the switch along with the video signal.

Not Compatible with ARC or eARC

This is another important point.

Anker’s official product page clearly states:

ARC: Not Supported
eARC: Not Supported

So do not advertise this model as an HDMI ARC switch for soundbars or AV return-channel applications.

Its purpose is standard HDMI audio/video switching.

CEC Documentation Note

Anker’s support documentation lists CEC among supported functions, while some regional/Amazon-derived product listings state that CEC is not supported.

Because the published information conflicts, I recommend not advertising HDMI-CEC as a selling feature on Ayoub.

That avoids promising customers automatic device-control functionality that may depend on their particular setup.

Compact Design

The Anker HDMI Switch is extremely compact.

Official Anker dimensions:

55 × 55 × 14.6mm

Weight:

29g.

Its small size makes it easy to place:

• Behind a TV
• Beside a monitor
• On a gaming desk
• Inside an entertainment cabinet
• In a laptop or travel bag

macOS & Windows Compatibility

Anker officially lists compatibility with:

macOS 12 or later
Windows 10 or later.

For standard HDMI game consoles and media boxes, no computer operating system is required.

Anker HDMI Switch 4K 60Hz Kuwait – Key Features

• Bi-Directional HDMI Switch
• 2 Input → 1 Output
• 1 Input → 2 Output Switching
• 4K @ 60Hz
• Up to 18Gbps Bandwidth
• HDCP 2.2
• 3D Content Support
• DTS / DSD / Dolby AC3
• 5.1 & 7.1 Channel Audio
• Up to 192kHz / 24-bit Audio
• One-Button Manual Switching
• Plug & Play
• No Driver Required
• PS5 / PS4 Compatible
• Xbox Compatible
• Nintendo Switch Compatible
• PC & Laptop Compatible
• TV / Monitor Compatibility
• No ARC / eARC
• Compact 55 × 55 × 14.6mm
• Approx. 29g
• Color: Black
• Model: A83H1
• Part Number: A83H10A1
• UPC: 194644173678
• ASIN: B0CJT6JBM8

Technical Specifications

Brand: Anker
Product Type: Bi-Directional HDMI Switch
Model: A83H1
Part Number / SKU: A83H10A1
UPC / GTIN: 194644173678
ASIN: B0CJT6JBM8
Color: Black
HDMI Ports: 3 Total
Mode 1: 2 HDMI Inputs → 1 HDMI Output
Mode 2: 1 HDMI Input → Select Between 2 HDMI Outputs
Maximum Resolution: 4K @ 60Hz
Maximum Bandwidth: 18Gbps
HDCP: HDCP 2.2
3D Support: Yes
ARC: No
eARC: No
Audio: DTS, DSD, Dolby AC3, 5.1, 7.1
Audio Sampling: Up to 192kHz / 24-bit
Dimensions: 55 × 55 × 14.6mm
Weight: Approx. 29g
Switching: Manual Push Button
Driver Required: No

Important: Switch vs Splitter

This point should be very clear on the product page.

In:

2-in-1-out mode

you choose which of the two HDMI sources appears on one display.

In:

1-in-2-out mode

you choose which of the two displays receives the source.

It does not send the same image to both displays at the same time.

Buy Anker HDMI Switch in Kuwait

If your TV or monitor has limited HDMI inputs, Anker HDMI Switch 4K 60Hz Kuwait gives you a compact way to connect multiple gaming consoles, computers, or media devices without constantly swapping HDMI cables.

With bi-directional operation, 4K 60Hz support, 18Gbps bandwidth, HDCP 2.2, multi-channel audio, and simple one-button switching, it is ideal for gaming, home entertainment, and workstation setups.

Buy Anker HDMI Switch 4K 60Hz Kuwait online from Ayoub for convenient HDMI switching between your favorite devices.
